€630.00 – €667.00 excl. BTW

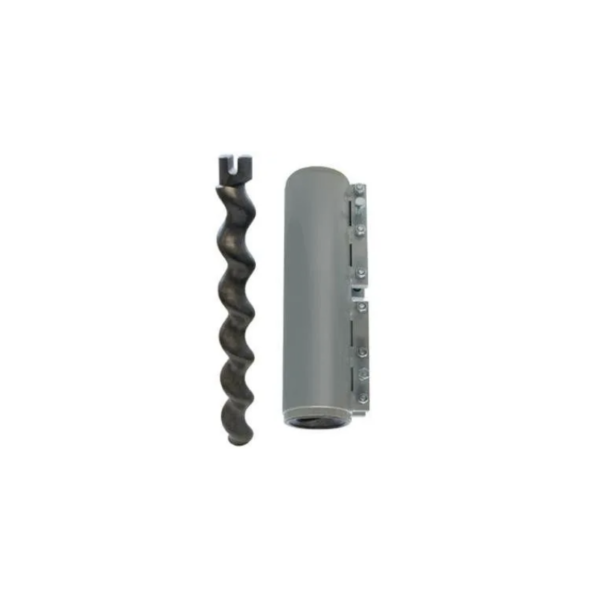

Putzmeister – Stator en Rotor – 2L75 voor de Self levelling floor screed pumps SP 11 THF.
Verkrijgbaar in hardness 55 kleur: grijs.
Design rotor head: bore of slot 16.
Wilt u de stator of rotor los bestellen? Neem dan contact met ons op.
Putzmeister – Stator en Rotor – 2L75
Putzmeister – Stator en Rotor – 2L75 voor de Self levelling floor screed pumps SP 11 THF.
Verkrijgbaar in hardness 55 kleur: grijs.
Design rotor head: bore of slot 16.
Wilt u de stator of rotor los bestellen? Neem dan contact met ons op.
| Gewicht | N/B |
|---|---|
| "Delivery quantity (l/min)" | 0 – 200 |
| "l/min at 100 UpM** (75% Efficiency)" | 75 |
| Colour | Grey |
| "Hardness (˚Shore)" | 55 |
| "Max. Grain (mm)" | 8 |
| "Pump Pressure (bar)" | 20 |
| "Length/ Ø Stator (mm)" | 670 / 124 |
| "Length Rotor without pin (mm)" | 746 |
| "Design rotor head" | Bore, slot 16 |
| "Stator Art. No" | 487 262, 502 911 |
| "Rotor Art. No" | 487 261, 500 516 |
| "Clamping Jacket Art. no." | integraded, Maintenance-free |
| "Rotor for Uni-mixer Art. No." | – |
